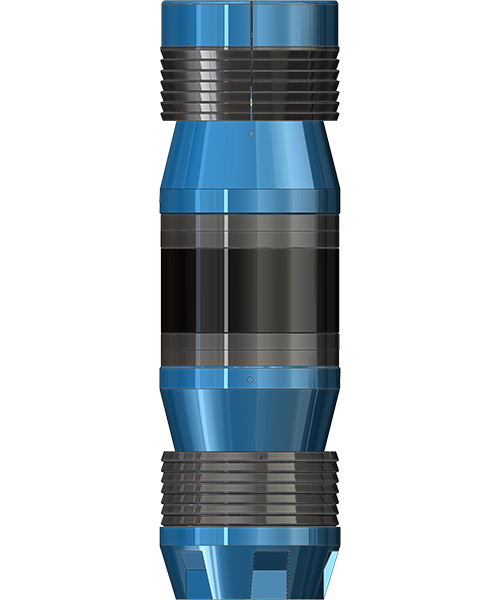

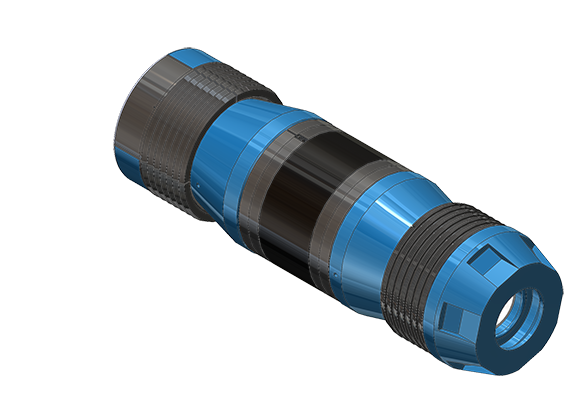

Model GWB Wireline Set Bridge Plugs are compact, small OD and designed for easy drill out. These bridge plugs will set securely in all but the very highest tensile casing. A ratchet lock ring stores the setting load in the plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 2 3/8” through 20” casing , temporary or permanent isolation.
Can be set directly with GWSB wireline setting tools or GHSB hydraulic setting tools.
Easy for mill out.
Ratchet lock ring maintains setting load for safe setting under pressure changes.
Integral rubber and smooth metal ring form a reliable sealing system.
Can withstand higher pressure, up to 70MPa (10,000psi) differential pressure for sizes 7” and below.
The recommended temperature for conventional glum cover is within 148°C (300°F), and rubbers up to 204°C (400°F) are available.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Setting tool # | Tool OD (in) | Release Force (lbs) | |
Min (in) | Max (in) | |||||
| 2 3/8 | 4.0-5.8 | 1.78 | 2.074 | 5 | 1.75 | 9,000 |
| 2 7/8 | 6.4-6.5 | 2.34 | 2.525 | 2.22 | ||
| 3 1/2 | 5.7-10.3 | 2.867 | 3.258 | 2.75 | ||
| 3 1/2 | 12.8-15.8 | 2.548 | 2.764 | 2.43 | 13,000 | |
| 4 | 5.6-14 | 3.34 | 3.732 | 10 | 3.14 | 20,000 |
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 33,000 | |
| 5 | 11.5-20.8 | 4.154 | 4.56 | 20 | 3.93 | |
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | ||
| 5 3/4 | 14-25.2 | 4.89 | 5.29 | 4.7 | ||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | |
| 7 | 23-35 | 5.938 | 6.366 | 5.68 | ||
| 7 | 17-23 | 6.336 | 6.538 | 6 | ||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | ||
| 8 5/8 | 24-49 | 7.31 | 8.097 | 7.12 | ||
| 9 5/8 | 29.3-58.5 | 8.435 | 9.063 | 8.12 | ||
| 10 3/4 | 32.7-60.7 | 9.66 | 10.192 | 9.43 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | ||
| 11 3/4 | 60-83 | 10.192 | 10.772 | 9.94 | ||
| 13 3/8 | 48-84.5 | 12.175 | 12.715 | 11.88 | ||
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | ||
| 20 | 94-133 | 18.73 | 19.124 | 18.37 | ||
Model GWB Wireline Set Bridge Plugs are compact, small OD and designed for easy drill out. These bridge plugs will set securely in all but the very highest tensile casing. A ratchet lock ring stores the setting load in the plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 2 3/8” through 20” casing , temporary or permanent isolation.
Can be set directly with GWSB wireline setting tools or GHSB hydraulic setting tools.
Easy for mill out.
Ratchet lock ring maintains setting load for safe setting under pressure changes.
Integral rubber and smooth metal ring form a reliable sealing system.
Can withstand higher pressure, up to 70MPa (10,000psi) differential pressure for sizes 7” and below.
The recommended temperature for conventional glum cover is within 148°C (300°F), and rubbers up to 204°C (400°F) are available.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Setting tool # | Tool OD (in) | Release Force (lbs) | |
Min (in) | Max (in) | |||||
| 2 3/8 | 4.0-5.8 | 1.78 | 2.074 | 5 | 1.75 | 9,000 |
| 2 7/8 | 6.4-6.5 | 2.34 | 2.525 | 2.22 | ||
| 3 1/2 | 5.7-10.3 | 2.867 | 3.258 | 2.75 | ||
| 3 1/2 | 12.8-15.8 | 2.548 | 2.764 | 2.43 | 13,000 | |
| 4 | 5.6-14 | 3.34 | 3.732 | 10 | 3.14 | 20,000 |
| 4 1/2 | 9.5-16.6 | 3.826 | 4.09 | 3.59 | 33,000 | |
| 5 | 11.5-20.8 | 4.154 | 4.56 | 20 | 3.93 | |
| 5 1/2 | 13-23 | 4.58 | 5.044 | 4.31 | ||
| 5 3/4 | 14-25.2 | 4.89 | 5.29 | 4.7 | ||
| 6 5/8 | 17-32 | 5.595 | 6.135 | 5.37 | 50,000 | |
| 7 | 23-35 | 5.938 | 6.366 | 5.68 | ||
| 7 | 17-23 | 6.336 | 6.538 | 6 | ||
| 7 5/8 | 20-39 | 6.625 | 7.125 | 6.31 | ||
| 8 5/8 | 24-49 | 7.31 | 8.097 | 7.12 | ||
| 9 5/8 | 29.3-58.5 | 8.435 | 9.063 | 8.12 | ||
| 10 3/4 | 32.7-60.7 | 9.66 | 10.192 | 9.43 | ||
| 11 3/4 | 38-60 | 10.772 | 11.15 | 10.43 | ||
| 11 3/4 | 60-83 | 10.192 | 10.772 | 9.94 | ||
| 13 3/8 | 48-84.5 | 12.175 | 12.715 | 11.88 | ||
| 16 | 65-118 | 14.576 | 15.25 | 14.12 | ||
| 20 | 94-133 | 18.73 | 19.124 | 18.37 | ||
