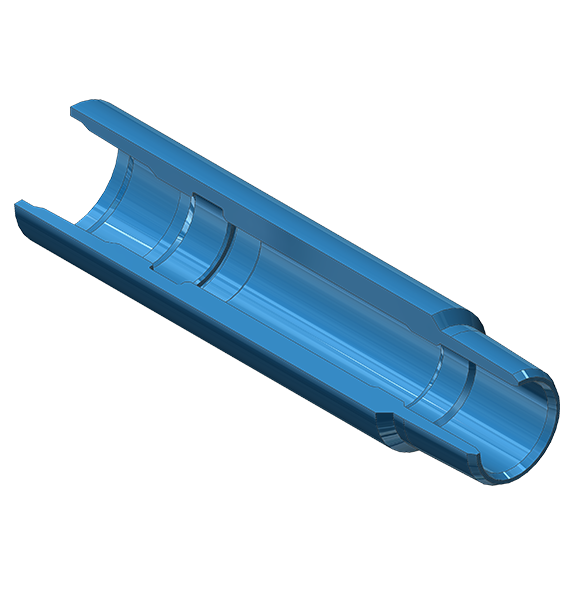

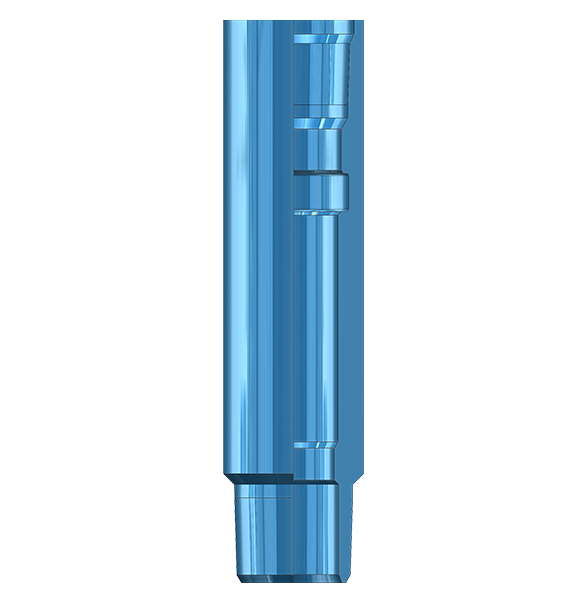

The Model “R” Profile Nipple is a BOTTOM No Go Nipple that provides for the location of various wireline flow control devices in the production string. Model “R” Profile Nipple can be used in the same range as Model “F”.In addition, a stopper on the lower part of the tool catches the wireline tool and prevents it from falling into the well.
Non-selective Profile Nipple.
The lower part has a stopper step with a smaller inner bore.
Longer sealed bore.
Same strength as standard tubing.
Various special connections are available.
Specifications | |||||
Size (in) | OD (in) | Seal bore (in) | NoGo ID (in) | Pressure (psi) | Connection thread |
| 1.9 | 2.5 | 1.5 | 1.447 | 10,000 | 1.90" EUE |
| 2 .375 | 3.063 | 1.781 | 1.728 | 2 3/8" EUE | |
| 1.812 | 1.76 | ||||
| 1.875 | 1.822 | ||||
| 2 .875 | 3.668 | 2.25 | 2.197 | 2 7/8" EUE | |
| 2.312 | 2.259 | ||||
| 3.5 | 4.5 | 2.75 | 2.697 | 3 1/2"EUE | |
| 2.812 | 2.759 | ||||
The Model “R” Profile Nipple is a BOTTOM No Go Nipple that provides for the location of various wireline flow control devices in the production string. Model “R” Profile Nipple can be used in the same range as Model “F”.In addition, a stopper on the lower part of the tool catches the wireline tool and prevents it from falling into the well.
Non-selective Profile Nipple.
The lower part has a stopper step with a smaller inner bore.
Longer sealed bore.
Same strength as standard tubing.
Various special connections are available.
Specifications | |||||
Size (in) | OD (in) | Seal bore (in) | NoGo ID (in) | Pressure (psi) | Connection thread |
| 1.9 | 2.5 | 1.5 | 1.447 | 10,000 | 1.90" EUE |
| 2 .375 | 3.063 | 1.781 | 1.728 | 2 3/8" EUE | |
| 1.812 | 1.76 | ||||
| 1.875 | 1.822 | ||||
| 2 .875 | 3.668 | 2.25 | 2.197 | 2 7/8" EUE | |
| 2.312 | 2.259 | ||||
| 3.5 | 4.5 | 2.75 | 2.697 | 3 1/2"EUE | |
| 2.812 | 2.759 | ||||
