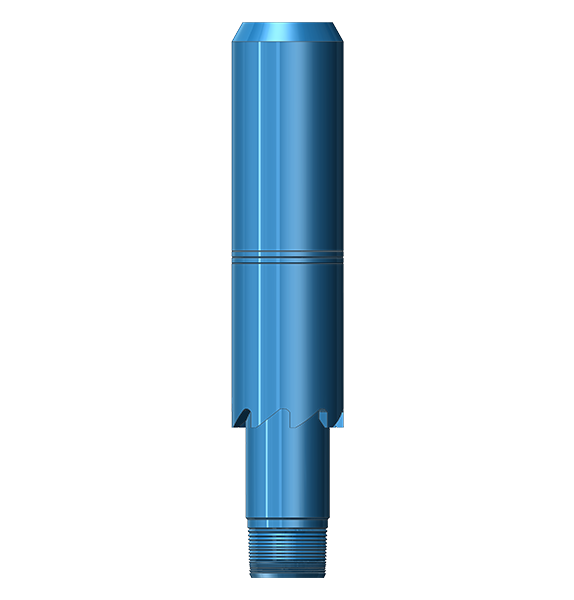

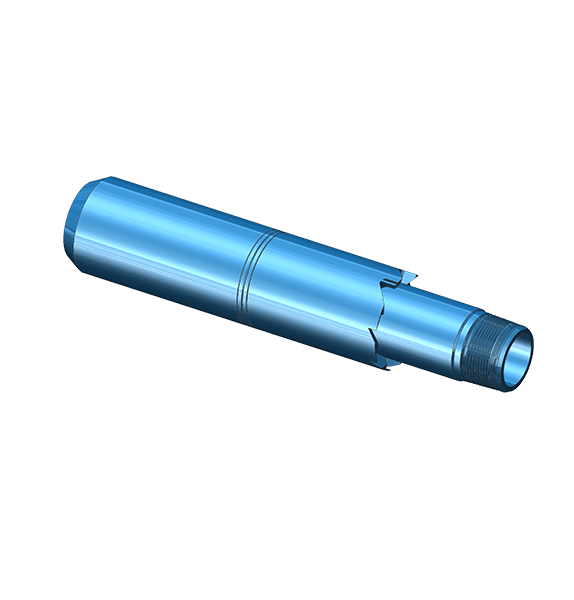

The GT-2 On-Off Tool is a tubing disconnect device that has an internal blanking plug locking profile with seal bore for utilizing flow control equipment. The Overshot has a box looking up which connects to tubing string and a pin looking down off the Stinger which connects to the packer. The GT-2 On-Off Tool has two basic components that comprise the Overshot. The Top Sub which contains two bonded rubber steel seals and the Jay Latch which has a J Slot configuration to locate and latch the On—Off Tool Stinger. The Jay Latch also has a wash over shoe configuration which allows cutting through debris. The Overshot automatically Jays up on the Stinger when lowered into well.
Safe and reliable
Can be designed with locking groove and smooth sealing inner hole.
Can be designed to be left-handed or right-handed and designed with drilling.
Easily pass through well debris.
Specifications | |||||
Casing Size (in) | Tool OD (in) | OD Of Stinger in (in) | Tension (lbs) | Pressure (psi) | Connection thread (in) |
| 4.5 | 3.75 | 2.609 | 65,000 | 10,000 | 2 3/8" EUE |
| 5.5 | 4.5 | 2.609 | 2 3/8" EUE | ||
| 5.5 | 4.5 | 3.25 | 75,000 | 2 7/8" EUE | |
| 7 | 5.875 | 3.25 | 2 7/8" EUE | ||
The GT-2 On-Off Tool is a tubing disconnect device that has an internal blanking plug locking profile with seal bore for utilizing flow control equipment. The Overshot has a box looking up which connects to tubing string and a pin looking down off the Stinger which connects to the packer. The GT-2 On-Off Tool has two basic components that comprise the Overshot. The Top Sub which contains two bonded rubber steel seals and the Jay Latch which has a J Slot configuration to locate and latch the On—Off Tool Stinger. The Jay Latch also has a wash over shoe configuration which allows cutting through debris. The Overshot automatically Jays up on the Stinger when lowered into well.
Safe and reliable
Can be designed with locking groove and smooth sealing inner hole.
Can be designed to be left-handed or right-handed and designed with drilling.
Easily pass through well debris.
Specifications | |||||
Casing Size (in) | Tool OD (in) | OD Of Stinger in (in) | Tension (lbs) | Pressure (psi) | Connection thread (in) |
| 4.5 | 3.75 | 2.609 | 65,000 | 10,000 | 2 3/8" EUE |
| 5.5 | 4.5 | 2.609 | 2 3/8" EUE | ||
| 5.5 | 4.5 | 3.25 | 75,000 | 2 7/8" EUE | |
| 7 | 5.875 | 3.25 | 2 7/8" EUE | ||
