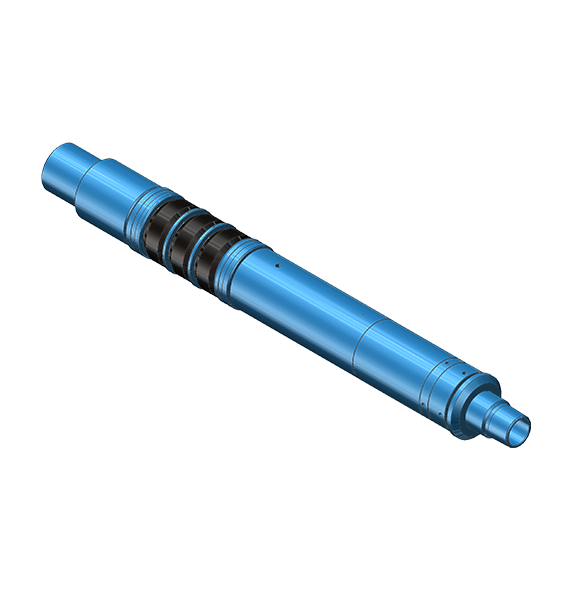

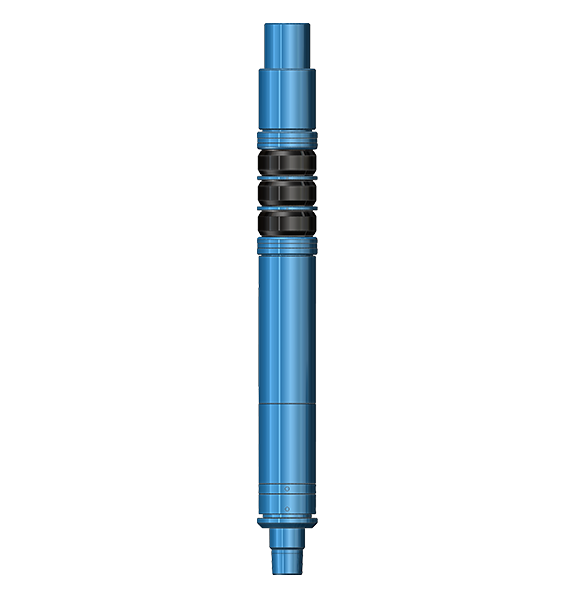

The GHC Packers is used in injection, formation fracturing, acidizing and squeeze
cementing. It is hydraulic setting, and can be use solely or with other packers as a
combination. Hydraulic anchor is recommended with the string to enhance the stability.
Sets securely in any hardness casing, including premium grades.
Suitable for highly-deviated well.
Oil pipe hydraulic setting.
Triple seal multi-durometer elements.
Built-in bypass.
Can withstand higher pressure, 7” and below specifications can withstand up to 52MPa (7500psi) differential pressure.
The recommended operating temperature for conventional gum cover is within 148°C (300°F). For other working conditions, please consult GRIFCO.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | |
Min (in) | Max (in) | |||||
| 5 1/2 | 20.0-23.0 | 4.625 | 4.778 | 4.5 | 2 | 2 7/8"-8RD EU |
| 15.5-20.0 | 4.778 | 4.95 | 4.64 | |||
| 13.0-15.5 | 4.95 | 5.19 | 4.78 | |||
| 7 | 38 | 5.83 | 5.937 | 5.65 | 2.44 | 2 7/8"-8RD EU |
| 32.0-35.0 | 5.938 | 6.135 | 5.81 | |||
| 26.0-29.0 | 6.136 | 6.276 | 5.97 | |||
| 20.0-26.0 | 6.276 | 6.456 | 6.07 | |||
| 17.0-20.0 | 6.456 | 6.578 | 6.27 | |||
| Other specifications can be customized | ||||||
The GHC Packers is used in injection, formation fracturing, acidizing and squeeze
cementing. It is hydraulic setting, and can be use solely or with other packers as a
combination. Hydraulic anchor is recommended with the string to enhance the stability.
Sets securely in any hardness casing, including premium grades.
Suitable for highly-deviated well.
Oil pipe hydraulic setting.
Triple seal multi-durometer elements.
Built-in bypass.
Can withstand higher pressure, 7” and below specifications can withstand up to 52MPa (7500psi) differential pressure.
The recommended operating temperature for conventional gum cover is within 148°C (300°F). For other working conditions, please consult GRIFCO.
Specifications | ||||||
Casing OD (in) | Casing Wt (lbs/ft) | Setting range | Tool OD (in) | Tool ID (in) | Connection thread | |
Min (in) | Max (in) | |||||
| 5 1/2 | 20.0-23.0 | 4.625 | 4.778 | 4.5 | 2 | 2 7/8"-8RD EU |
| 15.5-20.0 | 4.778 | 4.95 | 4.64 | |||
| 13.0-15.5 | 4.95 | 5.19 | 4.78 | |||
| 7 | 38 | 5.83 | 5.937 | 5.65 | 2.44 | 2 7/8"-8RD EU |
| 32.0-35.0 | 5.938 | 6.135 | 5.81 | |||
| 26.0-29.0 | 6.136 | 6.276 | 5.97 | |||
| 20.0-26.0 | 6.276 | 6.456 | 6.07 | |||
| 17.0-20.0 | 6.456 | 6.578 | 6.27 | |||
| Other specifications can be customized | ||||||
