产品简介

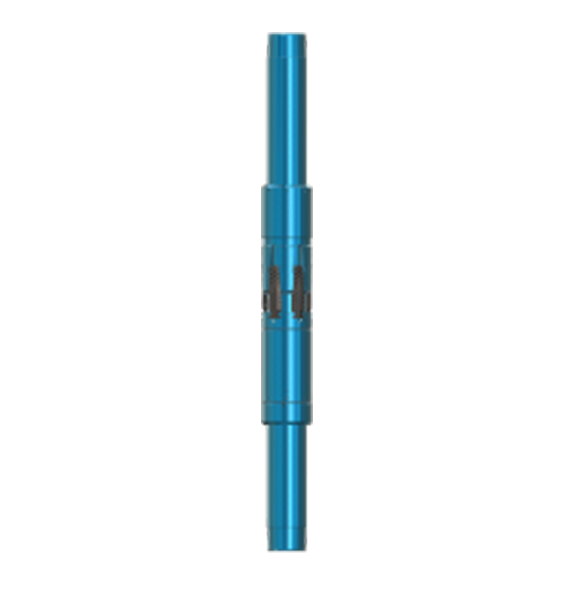

GH系列悬挂器能够悬挂特别超重载的尾管，本体无焊接件，与锥形悬挂器相比，极大的提高了悬挂能力，当悬挂尾管重量时，载荷沿圆周传递到卡瓦座上，而不是沿径向作用到中心管上，从而防止悬挂器钢体在高负荷作用下挤毁。

产品特点

无焊接结构

悬挂能力极强，远大于普通锥形悬挂器

座挂后，不会减少循环通道

坐挂后卡瓦与套管接触面积大，悬挂更牢固，老井侧钻悬挂作业理想选择

规格型号

尾管悬挂器尺寸 ( 套管 × 尾管 ) 英寸	套管磅级		最大外径
	套管磅级		最大外径
	磅 / 英尺	公斤 / 米	英寸	毫米
5"x 3-1/2"	11.5-15	17.15-22.37	4.24	107.7
5"x 3-1/2"	18	26.84	4.12	104.65
5-1/2"x 3-1/2"	14-23	20.87-34.30	4.5	114.3
	26-29.7	38.77-44.29	4.24	107.7
	32.3	48.16	4.12	104.64
5-1/2";x 4";	14-17	20.87-25.35	4.732	120.19
5-1/2";x 4";	20	29.82	4.618	117.29
5-3/4"x4"	18	26.84	4.94	125.48
7"x 4-1/2"	20-35	29.83-52.20	5.819	147.8
	35-41	52.20-61.14	5.625	142.88
	35-42.7	52.20-63.68	5.56	141.22
7"x5"	17-26	25.35-38.77	6.106	155.09
	26-32	38.77-47.72	5.924	150.46
	32-35	47.72-52.20	5.82	147.83
	35-38	52.20-56.67	5.775	146.68
	38-41	56.67-61.14	5.675	144.15
7-5/8"x 5"	24-33.7	35.79-50.25	6.595	167.51
	29.7-39	44.29-58.16	6.455	163.95
	42.8-45.3	63.83-67.55	6.275	159.38
	47.1	70.24	6.215	157.86
7-5/8"x 5-1/2"	24-33.7	35.79-50.25	6.595	167.51
	29.7-39	44.29-58.16	6.455	163.95
	42.8-45.3	63.83-67.55	6.275	159.38
	47.1	70.24	6.215	157.86
9-5/8"x 5"	40-53.5	59.65-79.78	8.334	211.68
9-5/8"x 5-1/2"	40-53.5	59.65-79.78	8.334	211.68
9-5/8"x 7"	40-53.5	59.65-79.78	8.334	211.68
9-5/8"x 7"	43.5-58.4	64.87-87.09	8.234	209.14
9-5/8"x7-5/"	32.3-40	48.17-59.65	8.634	219.3
	43.5-47	64.87-70.09	8.48	215.39
	47-53.5	70.09-79.78	8.359	212.32
10-3/4"x 7"	32.8-85.3	48.91-127.21	8.955	227.45
10-3/4"x7-5/8"	32.8-55.5	48.91-82.77	9.46	240.28
10-3/4"x7-5/8"	51-73.2	76.06-109.16	9.152	232.46
11-3/4"x 9-5/8"	42-54	62.63-80.53	10.679	271.24
	54-60	80.53-89.48	10.571	268.5
	60-66.7	89.48-99.47	10.475	266.07
	71	105.88	10.41	264.41
13-3/8"x 9-5/8"	54.5-72	81.28-107.37	12.14	308.36
13-3/8"x 9-5/8"	48-98	71.58-146.15	11.718	297.63
13-3/8"x 9-7/8"	48-80.7	71.58-120.35	12.05	306.07
13-3/8"x10-3/4"	48 -72	71.58-107.37	12.146	308.51
16"x13-3/8"	75-84	111.85-125.27	14.7	373.38
16"x13-3/8"	84-109	125.27-162.55	14.375	365.13
18-5/8"x 16"	87.5	130.49	17.4	441.96
20"x 13-3/8"	94-169	140.18-252.03	18.053	458.55
20"x 16"	131-169	195.36-252.03	17.5	444.5
20"x 16"	163-187	243.08-278.87	17.4	441.96
